| Area | Item | Done or Not |
|---|---|---|
| Rear Axle | Torque Diff to Axle Casing (??) | Done |
| Oil in Diff (EP90, 1.75ltrs) | Done | |
| Torque U-bolts (65 Lb ft) (flock plate) | ||
| Set Spring distance to Chassis (When springs have settled) (Rear spring distance on 88″ SWB 142mm to 146mm) | Done | |
| Torque Spring Hangers (58 lb ft) (When springs have settled) | Done | |
| Shock Absorbers (When springs have settled) | Done | |
| Axle Straps (When springs have settled) | Done | |
| Hub Bearing end float setting | Done | |
| Front Axle | Torque Diff to Axle Casing | Done |
| Oil in Diff (EP90 1.75ltr) | Done | |
| Torque U-bolts (65 Lb ft) (Lock Plate) | ||
| Set Spring Distance to Chassis (Front spring distance on 88″ SWB 110mm to 114mm) | Done | |
| Torque Spring Hangers (58 lb ft) | Done | |
| Hub Bearing Pre-Load | Done | |
| Front NS Half Shaft (Decide on action or leave as is) | Fixed, New Axle case. | |
| Oil in Swivels (One Shot) | Done | |
| Check and adjust Swivel pre-load | Done | |
| Shock Absorbers | Done | |
| Zin Plate/replace Steering stop bolts | Done | |
| hubnut 10-15ft lb / inner hubnut 15 – 20 ft lb | Done | |
| Steering | Zinc plate Steering box bolts and lock plates | Done |
| Oil in Steering box (EP90 .5ltr approx) | ||
| Torque Ball joints (30 lb ft) | ||
| Torque Steering arm pinch bolts (55 lb ft) | ||
| Torque Brackets to chassis & bulkhead (15 lb ft) | ||
| Torque Drop Arm (60 – 80 lb ft) | ||

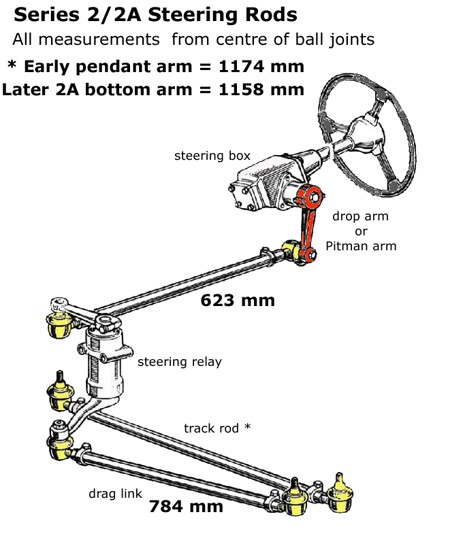

Adjust/Set steering alignment |
